| Model | Name | Download |
|---|---|---|
| B1030 | Mini T-slot Clamp |
| Model | Name | Download |
|---|---|---|
| B1030 | Mini T-slot Clamp |

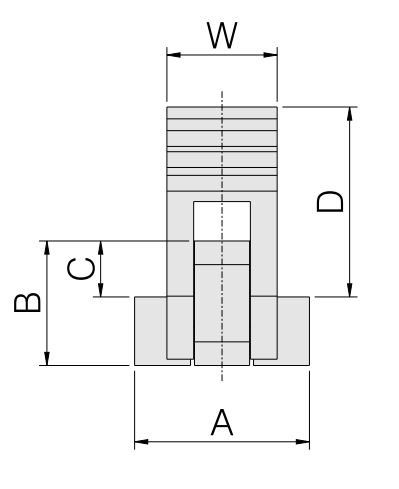

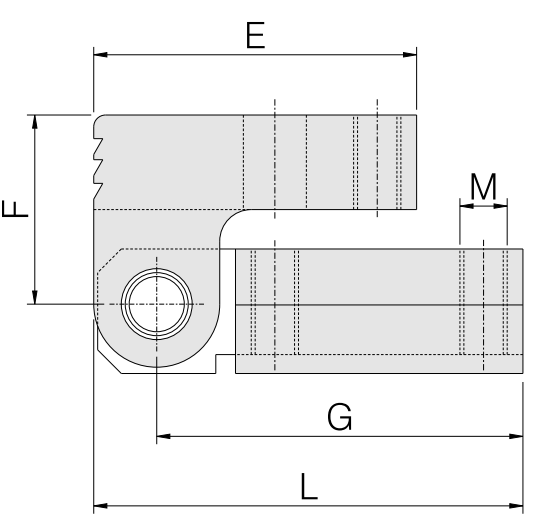

| Part No. | W | A | B | C | L | D | E | F | G | M | Weight (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| B1030-14-54 | 14 | 22.2 | 15.8 | 7.1 | 54 | 24.1 | 41 | 24 | 46 | M6 | 0.16 |
| B1030-16-65 | 16 | 25.4 | 15.8 | 7.1 | 65 | 27.1 | 50 | 27 | 55 | M8 | 0.23 |
| B1030-18-65 | 18 | 28.5 | 19.0 | 7.9 | 65 | 28.9 | 50 | 29 | 55 | M8 | 0.30 |
