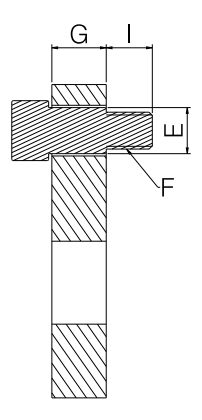

| Part No. | For Suitable Screw | A | B | C | D | E | F | G | H | I | Weight (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| B1210-M10 | M10 | 11 | 32 | 24 | 16 | 8 | M6 | 12.8 | 13 | 10 | 0.078 |
| B1210-M12 | M12 | 13.5 | 40 | 27 | 20 | 10 | M8 | 12.8 | 13 | 10 | 0.13 |
| B1210-M16 | M16 | 18 | 50 | 33 | 20 | 10 | M8 | 12.8 | 13 | 10 | 0.18 |
