B1108 – Heavy Duty screw jack
Home
B1108 – Heavy Duty screw jack
Home
/
Standard Clamping Elements
/
Support Jack
/ B1108 – Heavy Duty screw jack
B1108 – Heavy Duty screw jack
Enquiry now
Download

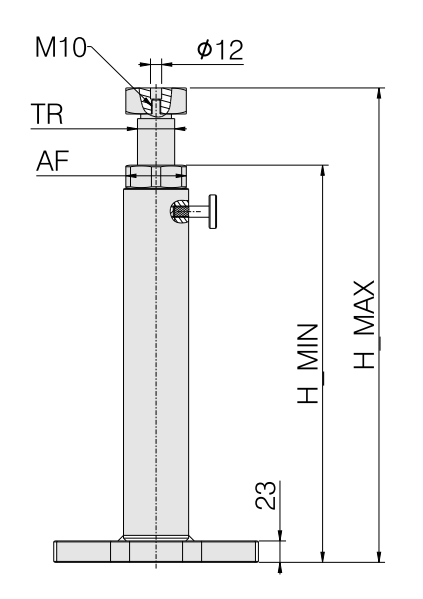

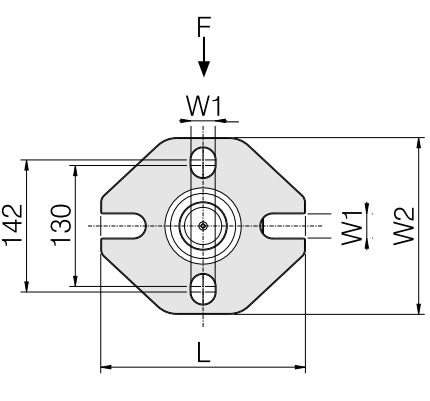

Diagram
Description
Model
Name
Download
B1108
Heavy Duty Screw Jack
PDF
Description
Part No.
Size
H-min
H-max
TR
W1
W2
L
AF
F-max (KN)
Weight (Kg)
B1108-430-750
750
430
750
40X7
26
190
220
65
50
15
