Model WT

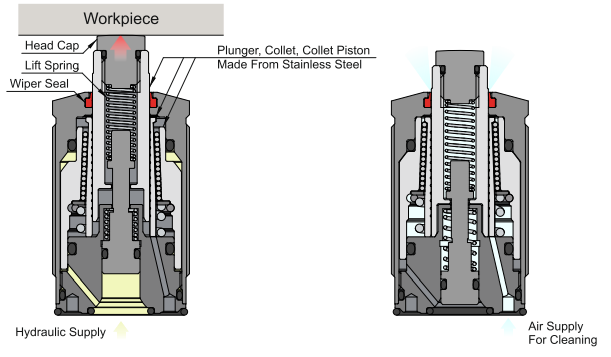

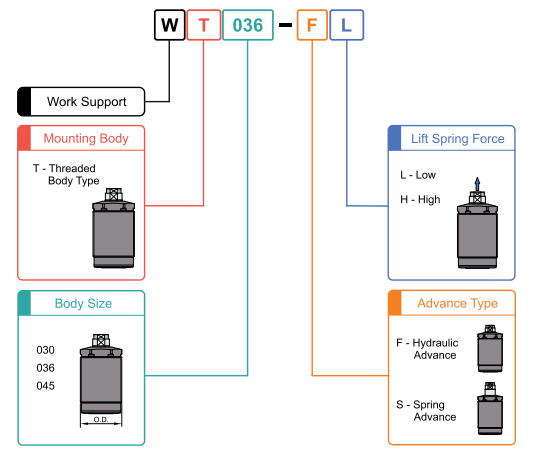

Model No.

WT030

WT036

WT045

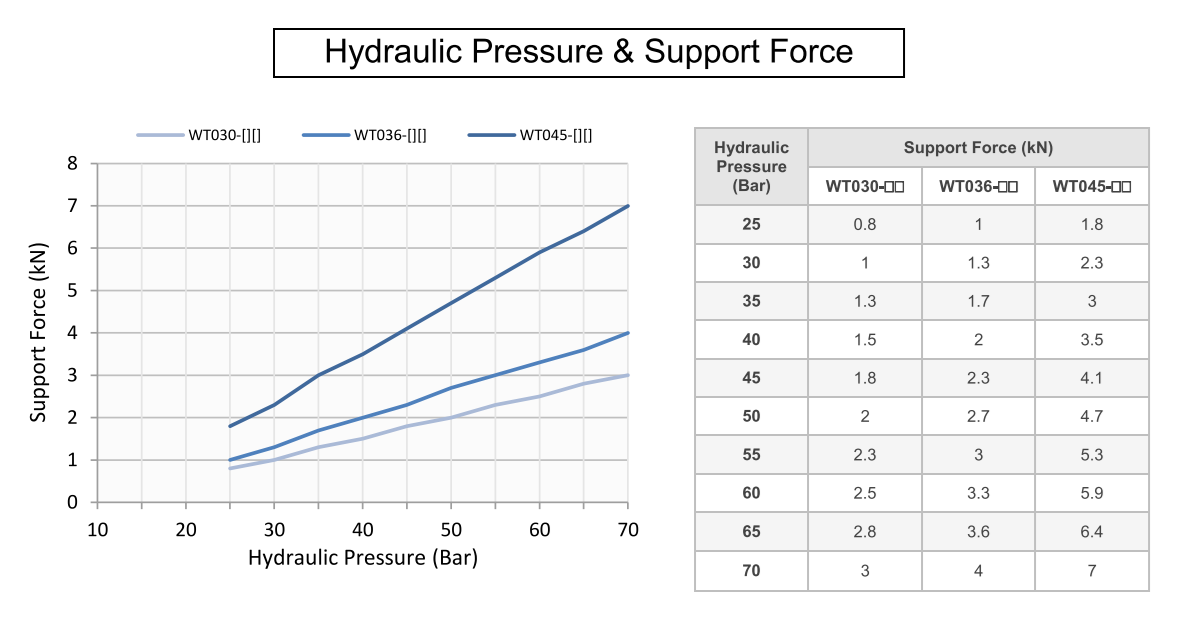

Support Force at 70 Bar (kN)

Lift Spring Force

Low N	2 ∼ 4	2 ∼ 4	3 ∼ 6
High N	3 ∼ 6	3 ∼ 6	5 ∼ 8

Plunger Stroke mm

Cylinder Capacity

Hydralulic Advance cm³	0.97	1.74	2.54
Spring Advance cm³	0.57	1.11	1.75

Mass Kg

0.3

0.4

0.75

Description

Head Cap is included.
Reference for designing head cap and lift spring as per your requirement other than the included ones.
When designing own head cap and lift spring, maintain dimensions which are given above in table.
Figure indicates that head cap is assembled in a such condition where no pressure is applied.

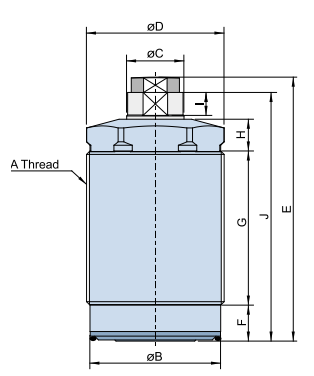

Model No.	WT030F	WT036F	WT045F
A Thread (Nominal X Pitch)	M30 X 1.5	M36 X 1.5	M45 X 1.5
ØB	28.2	34.2	43.2
ØC	12	15	16
ØD	30	36	45
E	73	69	82
F	9.4	9.4	9.4
G	42.3	40.3	49.35
H	10.3	8.3	12.25
I	6	6	6
J	69	65	78
K	10	13	13
L	27	32	41

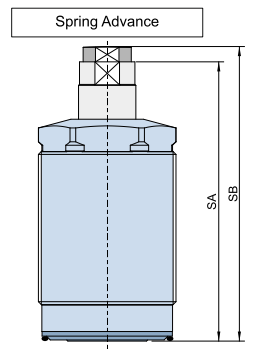

SA	77	73	88
SB	81	77	92

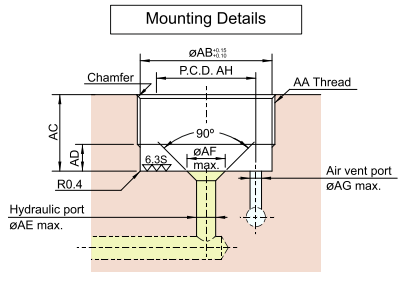

AA Thread (Nominal X Pitch)	M30 X 1.5	M36 X 1.5	M45 X 1.5
ØAB	28.5	34.5	43.5
AC	17∼32	18∼48	21∼58
ØAE (MAX.)	8	8	10
ØAF (MAX.)	10	10	12
ØG (MAX.)	3	4	5
AH	20	26	29
Chamfer	1 X 45º	1 X 45º	1 X 45º
X (Nominal X Pitch X Depth)	M8 X 1.25 X 12	M10 X 1.5 X 11	M10 X 1.5 X 11
ØBA	10	12.5	12.5
BB	10	11	11
ØBC	6	7.8	7.8
ØBD	4.3	5	5
ØBE	4.3	5	5
ØBF	5.5	7.2	7.2
ØBG	6.8	8.5	8.5
BH	4	4	4
BJ	9	9	9
BK	23.2	24.1	32.5
BL	2	2	2
BM	50	50	50
BN (O-ring – L.D. X C/S)	5.5 X 1.5	8 X 1.5	8 X 1.5
